Turboprops

PILATUS PC 12/47

image description
image description

image description
image description

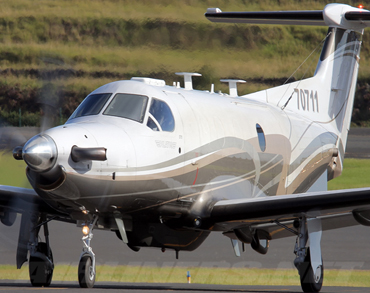

The Pilatus PC-12 is a single-engine turboprop passenger and cargo aircraft manufactured by Pilatus Aircraft of Switzerland. The main market for the aircraft is corporate transport and regional airliner operators. The U.S. Air Force's designation is the U-28A.


Performance & Specs

Short Runways, Land Closer



The Pilatus PC-12 NG is all about performance, versatility and economy. When you look at the numbers, you see it provides maximum return for every dollar invested. It represents a great combination of capacity, amenity, speed, range and performance made all the more compelling by the modest costs.



External Dimensions

Max cruise speed
280 ktas (322 mph)
519 km/hr TAS
Max range (3 Pax, 30,000 ft, NBAA IFR reserve)
1,560 nm / 1,795 sm
2,889 km
Max operating altitude
30,000 ft
9,144 m
Cabin altitude at 26,000 ft
8,000 ft
2,438 m
Takeoff distance over 50 ft obstacle
2,650 ft
808 m
Rate of climb (MTOW)
1,920 ft / min
585 m / min
Landing distance over 50 ft obstacle (MLW/reverse)
1,830 ft
558 m
Stall (MTOW)
67 kts IAS
124 km/h IAS

Weights


Max ramp weight
10,495 lbs
4,760 kg
Max takeoff weight
10,450 lbs
4,740 kg
Max landing weight
9,921 lbs
4,500 kg
Max zero fuel weight
9,039 lbs
4,100 kg
Basic operating weight (includes 200 lb / 91 kg pilot)
6,782 lbs
3,076 kg
Usable fuel (402 gal)
2,704 lbs
1,226 kg
Payload with full fuel (and 200 lb / 91 kg pilot)
1,009 lbs
458 kg



KING AIR C 90 PRODUCTION STOPPED.NOW AVAILABLE MODEL IS KING AIR C90GTI/GTX ,AIRCRAFT AVERAGE PRICE USED/NEW- 12 TO 22CROR

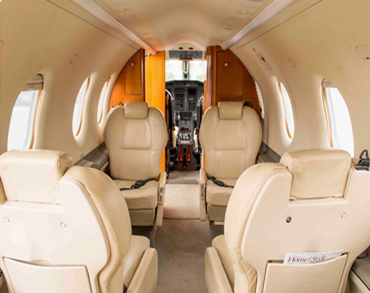

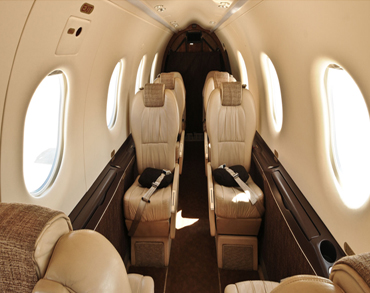

Cabin

One of the unique attributes of the Pilatus PC-12 NG is its adaptability to perform a wide range of missions. Not only has this fact created a high demand for the PC-12 NG, but it also lends a versatility that owners find irresistible.

The time you spend within the PC-12 should be productive, enjoyable and comfortable. To bestow these qualities upon the cabin, Pilatus has teamed up with BMW Group Designworks to create a series of interior designs that complement the aircraft

To accentuate your comfort and productivity, the PC-12 features a flat floor (unlike many with a dropped center aisle), a fully enclosed flushing lavatory and a baggage area that you can access in flight.

With the ability to integrate this airplane into both your business and personal life, some people have come to call it the ultimate aerial SUV

Cabin Dimensions

Cabin volume (excluding cockpit)
330 cu ft
9.34 cu m
Cabin length (excluding cockpit)
16 ft 11 in
5.16 m
Cabin width
5 ft 0 in
1.52 m
Headroom
4 ft 10 in
1.47 m
Cabin floor width (flat floor)
4 ft 3 in
1.30 m
Passenger door
24 in x 53 in
0.61 m x 1.35 m
Cargo door (standard on all aircraft)
52 in x 53 in
1.35 m 1.32 m
Baggage compartment
40 cu ft
1.13 cum

AIRCRAFT AVERAGE PRICE USED/NEW – 15cr to 21+ crapprox
