HAWKER BEECHCRAFT PREMIER 1A
AIRCRAFT DESCRIPTION

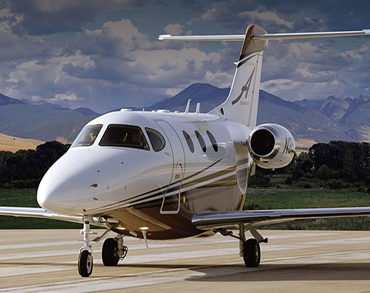

The Raytheon Premier I is powered by a pair of Williams/Rolls-Royce FJ44-2A turbofan engines flat rated at 2,300 lbs. of thrust each to ISA +13C. Inspection interval on the engines is 3,500 hours. The Raytheon Premier IA is a small, twin turbofan-powered entry-level corporate jet configured as a cantilever low-wing monoplane with a T-tail. Wings and tail surfaces are swept. The retractable tricycle landing gear is of a relatively narrow track and employs straight oleo main struts.
The fuselage is built in two main sections and is constructed entirely of carbon fiber and Nomex-honeycomb composite materials. The aluminum wing incorporates panels milled from solid aluminum stock. The somewhat unconventional shape of the fuselage reflects the extent to which computer modeling was used to determine a form which would best accommodate both the desired interior function and the high-speed airflow. The wing is mounted well below the fuselage pressure vessel with a curvaceous fairing to smooth the junction.

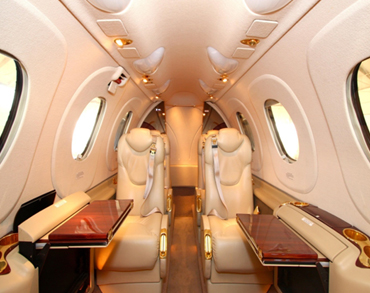

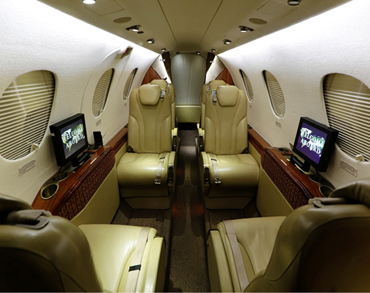

The Premier IA cabin entry is via an air stair door located on the port side of the fuselage forward of the wing. Cabin dimensions are 13.5ft in length, 5.4ft in height, and 5.5ft in width. The Beechcraft Premier IA features a contoured cabin headliner that increases passenger headroom, adjustable LED downwash lighting and passenger reading lights. The interior is roomy, quiet and comfortable with features contoured seats that swivel and recline, a private aft lavatory, and the availability of a variety of audio and video entertainment systems.
Cabin chairs have been restyled, adding side bolsters to the seat back and bottom cushions for increased comfort and new seat base contouring for more foot room for fifth and sixth seat occupants. Other improvements include a smooth single-action passenger work table incorporated into the lower sidewall, improved temperature control and table storage with 110 VAC outlets and provisioning for the optional Satcom flight phone. The cockpit has a volume of 85 cu ft while the remaining cabin area has 315 cu ft for a total interior volume of 400cu ft.
AIRCRAFT CHARACTERISTICS & SPECIFICATIONS(CJ2)
Engine |
2 X Williams Int. FJ44-2A |
Power |
2,300.00 lbf |
| Avionics |
Collins Pro Line 21 |
Max Cruise Speed |
835.23 km per hr 519.00 mph |
Service Ceiling |
12,496.80 metres 41,000.00 feets |
Rate of Climb |
731.52 mpm 2,400.00 fpm |
Cabin Height |
1.65 metres 5.41 feets |
Cabin Width |
1.68 metres 5.51 feets |
Cabin Length |
4.11 metres 13.48 feets |
Exterior Length |
14.02 metres 46.00 feets |
Wingspan |
13.56 metres 44.49 feets |
Fuselage Diameter |
1.90 metres 6.23 feets |
Baggage Volume |
1.84 cubic metre 64.98 \cubic feet |
Baggage Volume |
2.18 cubic metre 76.90 cubic feet |
Max Take Off Weight |
5,670.00 kgs 12,500.00 lbs |
Maximum Payload |
712.15 kgs 1,570.00 lbs |
Fuel Tank Capacity |
548.00 gallon 2,074.40 litres |
Fuel Economy |
1.16 km per litre 2.74 NM per gallon |
Min Take Off Distance |
1,155.80 metres 3,792.00 feets |
Min Landing Distance |
966.22 metres 3,170.00 feets |
Seating Chart /Seats |
6 |
Travel Range |
1,360.00 Nautical Miles –2,519 Km |
Country of Manufacture |
United States |
