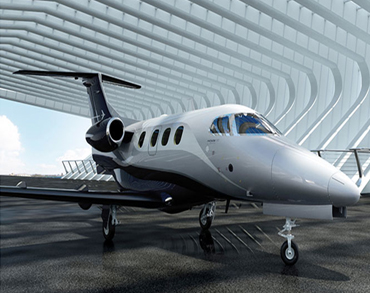

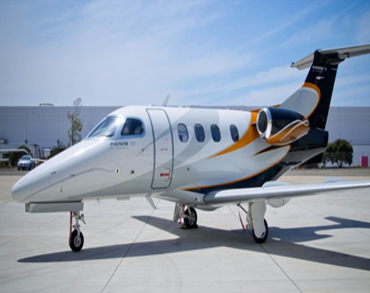

EMBRAER PHENOM 100
AIRCRAFT DESCRIPTION
The Embraer Phenom 100 is a very light jet developed by Brazilian aircraft manufacturer Embraer. It has been type certificated as the Embraer EMB-500 It has a capacity for four passengers in its normal configuration, but it can carry up to six passengers with a single crew, with optional side facing seat and belted toilet. It has a maximum flying range of 1,178 nmi (2,148 km) with four occupants and NBAA IFR Reserves.(2007-present)
AIRCRAFT CHARACTERISTICS & SPECIFICATIONS(CJ2)
Engine |
2 × Pratt &Whitney PW617F |
Power |
1,695.00 lbf |
| Avionics |
Embraer Prodigy Flight Deck 300 |
Max Cruise Speed |
704.00 km per hr437.47 mph |
Service Ceiling |
12,496.80 metres 41,000.00 feets |
Rate of Climb |
1,043.64 mpm 3,424.00 fpm |
Cabin Height |
1.50 metres 4.92 feets |
Cabin Width |
1.55 metres 5.09 feets |
Cabin Length |
3.35 metres 10.99 feets |
Exterior Length |
12.80 metres 41.99 feets |
Wingspan |
12.30 metres 40.35 feets |
Fuselage Diameter |
2.00 metres 6.56 feets |
Baggage Volume |
1.84 cubic metre 64.98 \cubic feet |
Max Take Off Weight |
4,550.00 kgs 10,030.93 lbs |
Maximum Payload |
725.76 kgs 1,600.00 lbs |
Fuel Tank Capacity |
201.00 gallon 760.87 litres |
Fuel Economy |
2.45 km per litre 5.77 NM per gallon |
Min Take Off Distance |
3,400.00 feets |
Min Landing Distance |
3,000.00 feets |
Seating Chart /Seats |
4 |
Travel Range |
1,160.00 NauticalMiles , 2,148km |
Country of Manufacture |
Brazil |
