AIRCRAFT DESCRIPTION
The Bell 407 is a four-blade, single-engine, civil utility helicopter; a derivative of the Bell 206L-4 LongRanger. The 407 uses the four-blade, soft-in-plane design rotor with composite hub developed for the United States Army's OH-58D Kiowa Warrior instead of the two-blade, semi-rigid, teetering, rotor of the 206L-4. The Bell 407 is frequently used for corporate and offshore transport, as an air ambulance, law enforcement, electronic news gathering and movie making.
The Bell 407 integrates reliability, speed, performance, and maneuverability with a cabin configurable for an array of missions and payloads. Its Rolls Royce 250-C47B turbine FADEC engine delivers exceptional hot & high performance with the ability to cruise at 140 knots (259 km/hr). The 407's spacious cabin seats up to five passengers in wide-open club-passenger seating and can be reconfigured to accommodate any number of tasks and payloads.
For added passenger comfort, the Bell 407 also provides a very quiet and smooth ride in virtually all weather conditions. In addition to offering outstanding product features, the 407 is backed by Bell's renowned in-service support, voted #1 by our customers for nineteen years running. The Bell 407 is proof that you don’t have to sacrifice comfort for performance
Power.Reliability.Maneuverability. The 407 has everything you'd expect from a Bell helicopter and more. The 407 is also exceptionally quiet. This makes the 407 not just a great way of getting to work, but also a great place to do work. It seats up to seven, comfortably. In fact, very comfortably, thanks to wide-open club seating and the smoothest ride in its class. In today's business world, it's all about performance. No wonder the 407 is so successful
- A spacious 85 ft³ (2.4 m³) cabin that accommodates five passenger

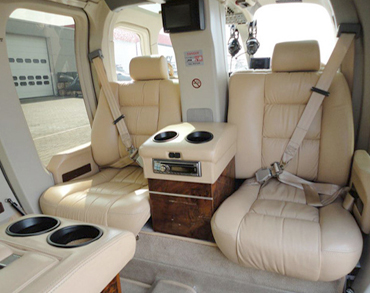

- Club seating with an available Quiet Cruise™ kit for decreased cabin noise
- All composite, four-blade rotor provides superior hover performance, speed and a smooth quiet ride
- Expanded safety and reduced operating costs from the FADEC (Full Authority Digital Engine Control) engine fuel management system of the proven Rolls Royce 250-C47B turbine engine
- Supported by Bell Helicopter's #1 ranked Customer Support and Services
AIRCRAFT CHARACTERISTICS & SPECIFICATIONS(CJ2)
Engine |
1 × Allison 250-C47 turboshaft |
Power |
700.00 Horsepower |
Avionics |
AP-85 Two-Axis Autopilot |
Maximum Cruising Speed |
244.61 km per hr 152.00 mph |
Service Ceiling |
5,696.71 metres 18,690.00 feets |
Rate of Climb |
243.84 mpm 800.00 fpm |
Cabin Height |
1.28 metres 4.20 feets |
Cabin Width |
1.37 metres 4.48 feets |
Cabin Length |
1.52 metres 5.00 feets |
Exterior Length |
12.70 metres 41.67 feets |
Wingspan / Rotor Diameter |
10.67 metres 35.01 feets |
Baggage Volume |
0.45 cubic metre 16.00 cubic feet |
Max Take Off Weight |
2,721.60 kgs 6,000.00 lbs |
Maximum Payload |
1,064.60 kgs 2,347.00 lbs |
Fuel Tank Capacity |
110.17 gallon 417.00 litres |
Fuel Economy |
1.44 km per litre 3.39 NM per gallon |
Seating Chart /Seats |
7 |
Travel Range |
598.00 Km -323 Nm |
Country of Manufacture |
United States |
